Scooter Mercato

Electric, Coil, Lighting Coil

Electric, Coil, Lighting Coil

91431

$55.50 USD
$55.50 USD
Sale Sold out
Shipping calculated at checkout.

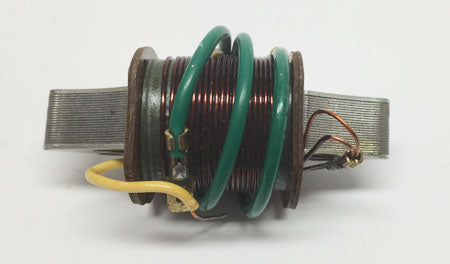

Lighting coil for three coil stators that were AC, without voltage regulator. These bikes use the common VBB2T wiring harness or the Sprint harness. This coil has one yellow and one green wire. The green powers headlight and horn and the yellow get soldered to the internal ignition coil or feeder coil.

VNC1, VLB1, VBC1, VNL2>3
View full details

This Part Fits On The Following Models:

Prefix Model Years CC's Frame Notes
VNB Vespa 125 59-66 125cc Large Frame - 8 in.

vnb 1-6
VNC Vespa Super 125 65-69 125cc Large Frame - 8 in.

without battery
VNL Vespa GT / GTR 66-78 125cc Large Frame - 10 in.

VNL1-2 30001-30742, VNL2-3
VBA Vespa 150 58-60 150cc Large Frame - 8 in.

without battery
VBB Vespa 150 60-67 150cc Large Frame - 8 in.

without battery
VBC Vespa Super 150 65-79 150cc Large Frame - 8 in.

without battery, turn signals, and has a pilot light
VLA Vespa GL 63-65 150cc Large Frame - 10 in.

without battery
VLB Vespa Sprint 150 65-79 150cc Large Frame - 10 in.

without battery, turn signals, and has pilot bulb
V5A Vespa 50 63-83 50cc Small Frame

only used on bikes without battery or turn signals and had a pilot light.
V5B Vespa 50 Special 72-83 50cc Small Frame

only used on bikes without battery or turn signals and had a pilot light.
V9A Vespa 90 63-84 90cc Small Frame

only used on bikes without battery or turn signals and had a pilot light.
VMA Vespa Primavera 65-83 125cc Small Frame

only used on bikes without battery or turn signals and had a pilot light.
